Yuchai has global business segments such as power systems, automotive business, engineering machinery, intelligent logistics, agricultural equipment and marine transportation equipment.
Yuchai is an international enterprise operating in all fields and industries. It is the only high-power OEM designated by Germany's MTU in China. It has power systems, automotive business, and engineering machinery. Logistics, agricultural equipment, maritime transportation equipment and other business sectors have branches and subsidiaries in Europe, North America, Asia and other regions, and its products are exported to more than 110 countries and regions.
| Model | Power | A | Engine model | Cylinders | C.D.C （L） |
Fuel consumption g/kW.H |
Size L×W×H |
KG | Download | ||
| kW | kVA | ||||||||||
YUCHAI Stage II Emissions |
|||||||||||
| BC-YC33-60 | 26.4 | 33 | 86A/220V | 4B3.9-G2 | 4 | 3.9 | 208 | 1650*720*1200 | 700 | Download | |
| BC-YC50-60 | 40 | 50 | 131.2A/220V | 4BT3.9-G2 | 4 | 3.9 | 208 | 1700*720*1200 | 710 | Download | |
| BC-YC68-60 | 54.4 | 68 | 178.4A/220V | 4BTA3.9-G2 | 4 | 3.9 | 210 | 1800*750*1200 | 920 | Download | |
| BC-YC90-60 | 72 | 90 | 236.1A/220V | 4BTA3.9-G11 | 4 | 3.9 | 210 | 1850*800*1300 | 1000 | Download | |
| BC-YC120-60 | 96 | 120 | 314.9A/220V | 4BTA3.9-G11 | 4 | 3.9 | 210 | 2250*800*1300 | 1250 | Download | |
| BC-YC145-60 | 116 | 145 | 380.5A/220V | 6BTA5.9-G2 | 6 | 5.9 | 207 | 2300*800*1300 | 1300 | Download | |
| BC-YC156-60 | 124.8 | 156 | 409.4A/220V | 6BTAA5.9-G2 | 6 | 5.9 | 207 | 2300*830*1300 | 1350 | Download | |
| BC-YC180-60 | 144 | 180 | 472.3A/220V | 6BTAA5.9-G12 | 6 | 5.9 | 207 | 2390*860*1850 | 1450 | Download | |
| BC-YC212-60 | 169.6 | 212 | 556.3A/220V | 6CTA8.3-G2 | 6 | 8.3 | 207 | 2400*970*1500 | 1600 | Download | |
| BC-YC250-60 | 200 | 250 | 656.0A/220V | 6CTAA8.3-G2 | 6 | 8.3 | 207 | 2400*970*1500 | 1700 | Download | |
| BC-YC285-60 | 228 | 285 | 360.8A/440V | 6LTAA8.9-G2 | 6 | 8.9 | 207 | 2500*960*1850 | 1900 | Download | |
| BC-YC323-60 | 258.4 | 323 | 423.8A/440V | 6LTAA9.5-G2 | 6 | 9.5 | 203 | 2900*1050*1400 | 2100 | Download | |
| BC-YC415-60 | 330 | 412.5 | 541.2A/440V | 6ZTAA13-G3 | 6 | 13 | 202 | 2900*1200*1750 | 3000 | Download | |
| BC-YC400-50 | 400 | 500 | 720A/400V | 6ZTAA13-G4 | 6 | 13 | 202 | 2900*1200*1750 | 3000 | Download | |
| BC-YC500-60 | 400 | 500 | 656.0A/440V | QSZ13-G7 | 6 | 13 | 201 | 3100*1250*1800 | 3100 | Download | |
| BC-YC550-60 | 440 | 550 | 721.7A/440V | QSZ13-G5 | 6 | 13 | 201 | 3100*1250*1800 | 3100 | Download | |
YUCHAI Stage III Emissions |
|||||||||||
| BC-YC345-60 | 275.2 | 344 | 451.3A/440V | NTA855-G1 | 6 | 14 | 206 | 3100*1050*1750 | 2900 | Download | |
| BC-YC350-60 | 280 | 350 | 459.2A/440V | NTA855-G1B | 6 | 11 | 210 | 3100*1050*1750 | 2950 | Download | |
| BC-YC440-60 | 350.4 | 438 | 574.7A/440V | NTA855-G3 | 6 | 14 | 206 | 3100*1050*1750 | 2950 | Download | |
| BC-YC500-60 | 400 | 500 | 656.0A/440V | KTA19-G2 | 6 | 19 | 206 | 3300*1400*1970 | 3800 | Download | |
| BC-YC625-60 | 500 | 625 | 820.1A/440V | KTA19-G3A | 6 | 19 | 206 | 3300*1400*1970 | 4000 | Download | |
| BC-YC750-60 | 600 | 750 | 984.1A/440V | KTAA19-G6A | 6 | 19 | 206 | 3600*1500*2000 | 4800 | Download | |
| BC-YC850-60 | 680 | 850 | 1,115.3A/440V | KT38-G | 12 | 38 | 206 | 4300*1700*2350 | 7000 | Download | |
| BC-YC1000-60 | 800 | 1000 | 1,312.1A/440V | KTA38-G2 | 12 | 38 | 206 | 4300*1700*2350 | 7500 | Download | |
| BC-YC1100-60 | 880 | 1100 | 1,443.4A/440V | KTA38-G2A | 12 | 38 | 206 | 4400*1750*2350 | 8200 | Download | |
| BC-YC1250-60 | 1000 | 1250 | 1,640.2A/440V | KTA38-G4 | 12 | 38 | 208 | 4500*1800*2350 | 8800 | Download | |
| BC-YC1375-60 | 1100 | 1375 | 1,804.2A/440V | KTA38-G9 | 12 | 38 | 208 | 4500*1800*2350 | 9200 | Download | |
| BC-YC1560-60 | 1250 | 1562 | 2,049.6A/440V | KTA50-G3 | 16 | 50 | 205 | 5300*2080*2500 | 10000 | Download | |
| BC-YC1875-60 | 1500 | 1875 | 2,460.3A/440V | KTA50-G9 | 16 | 50 | 205 | 5700*2280*2500 | 10500 | Download | |
| BC-YC1440-60 | 1440 | 1800 | 2592A/400V | QSK50-G7 | 16 | 60 | 205 | 5700*2280*2500 | 12500 | Download | |
| BC-YC1680-60 | 1680 | 2100 | 3024A/400V | QSK60-G3 | 16 | 60 | 205 | 5700*2280*2500 | 13000 | Download | |
| BC-YC1760-60 | 1760 | 2200 | 3168A/400V | QSK60-G4 | 16 | 60 | 205 | 5800*2300*2600 | 13500 | Download | |
| BC-YC1840-60 | 1840 | 2300 | 3312A/400V | QSK60-G13 | 16 | 60 | 205 | 5800*2300*2600 | 13500 | Download | |
| BC-YC2000-60 | 2000 | 2500 | 3609A/400V | QSK60-G21 | 16 | 60 | 205 | 5800*2300*2600 | 13500 | Download | |
| BC-YC2200-60 | 2200 | 2750 | 3969A/400V | QSK78G18 | 16 | 60 | 205 | 6400*2800*3700 | 17000 | Download | |
| BC-YC2400-60 | 2400 | 3000 | 4330A/400V | QSK78-G9 | 16 | 60 | 205 | 6400*2800*3700 | 17000 | Download | |
1.- C.D.C means cylinder liner.
2. Los parámetros técnicos anteriores: la velocidad es 1800 RPM, la frecuencia es 60 HZ, la tensión nominal es 440 V / 254 V, el factor de potencia es 0,8 / 1,0, el modo de cableado es trifásico de 4 hilos. El grupo electrógeno 1500RPM / 50HZ y el grupo electrógeno de alto voltaje 10kV se pueden personalizar de acuerdo con las necesidades especiales de los clientes;
3.- The generator set can be selected from well-known brands such as Stamford, Marathon Electric, Leroy-Somer, Mecc Alte, WEG, etc. according to customer needs.
4.- This parameter table is for reference only and is subject to change without notice.

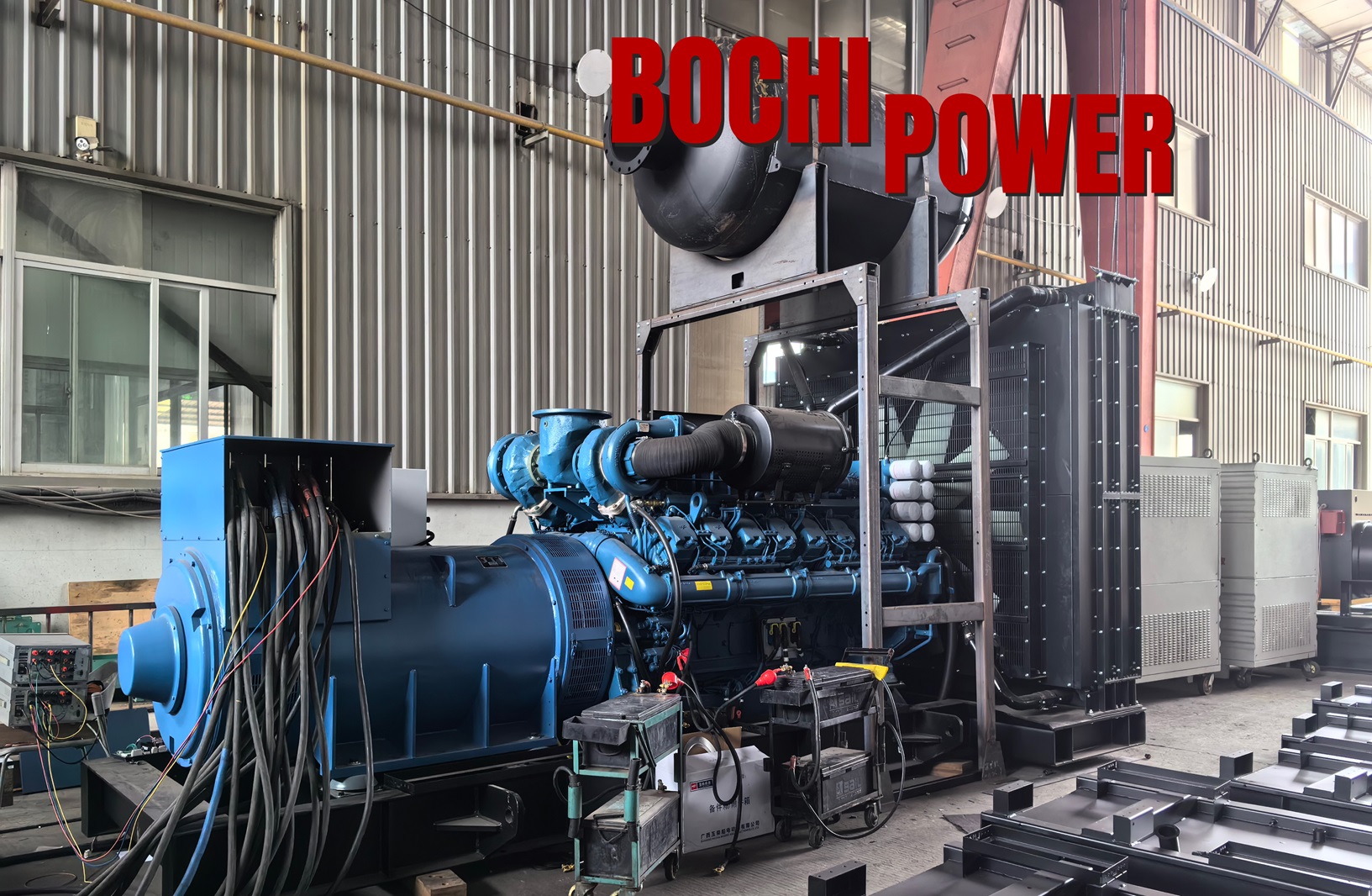

Each generator set has undergone a rigorous and comprehensive performance test, including 25% load, 50% load, 75% load, 100% load, 110% load, as well as inspection and verification of all control systems, alarm functions and protection functions. all qualified. They are only allowed to leave the factory after.
