La Unidad de Negocio de Sistemas de Energía de Rolls-Royce se centra en la creación de soluciones sostenibles y climáticamente neutrales para la propulsión, el accionamiento y la generación de energía.

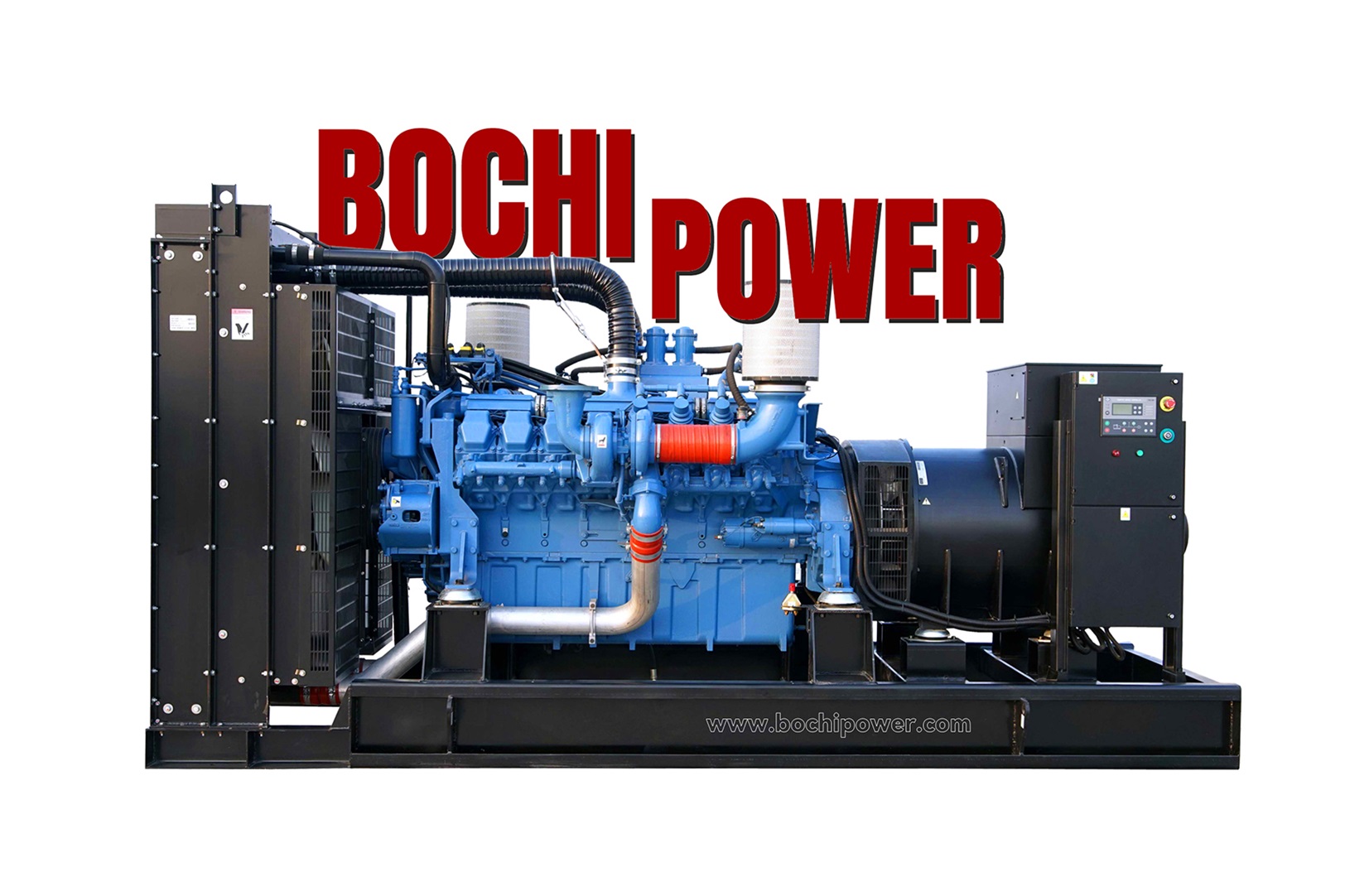

MTU is a brand of Rolls-Royce power systems and is the world's leading diesel engine manufacturer. Its diesel engines range in power from 35kw to 9000kw and are widely used in ships, heavy-duty vehicles, construction machinery and railway locomotives.
We integrate renewable energies and manage our clients' energy needs with advanced solutions such as microgrids.
| Model | Power | A | Engine model | Cylinders | C.D.C （L） |
Fuel consumption g/kW.H |
Size L×W×H |
KG | Download | ||
| kW | kVA | ||||||||||
| BCP MTU 1600系列 | |||||||||||
| BC-M220-50 | 220 | 275 | 396 | 6R1600G10F | 6 | 10.5L | 201 | 2800*1150*1650 | 2500 | Download | |
| BC-M250-50 | 250 | 312.5 | 450 | 6R1600G20F | 6 | 10.5L | 199 | 2800*1150*1650 | 2900 | Download | |
| BC-M300-50 | 300 | 375 | 540 | 8V1600G10F | 8 | 14L | 191 | 2840*1600*1975 | 3250 | Download | |
| BC-M320-50 | 320 | 400 | 576 | 8V1600G20F | 8 | 14L | 190 | 2840*1600*1975 | 3250 | Download | |
| BC-M360-50 | 360 | 450 | 648 | 10V1600G10F | 10 | 17.5L | 191 | 3200*1600*2000 | 3800 | Download | |
| BC-M400 | 400 | 500 | 720 | 10V1600G20F | 10 | 17.5L | 190 | 3320*1600*2000 | 4000 | Download | |
| BC-M480-50 | 480 | 600 | 864 | 12V1600G10F | 12 | 21L | 195 | 3300*1660*2000 | 3900 | Download | |
| BC-M500-50 | 500 | 625 | 900 | 12V1600G20F | 12 | 21L | 195 | 3400*1660*2000 | 4410 | Download | |
| BCP MTU 2000系列 | |||||||||||
| BC-M550-50 | 550 | 687.5 | 990 | 12V2000G25 | 12 | 23.88L | 197 | 4000*1650*2280 | 6500 | Download | |
| BC-M630-50 | 630 | 787.5 | 1134 | 12V2000G65 | 12 | 23.88L | 202 | 4200*1650*2280 | 7000 | Download | |
| BC-M800-50 | 800 | 1000 | 1440 | 16V2000G25 | 16 | 31.84L | 198 | 4500*2000*2300 | 7800 | Download | |
| BC-M880-50 | 880 | 1100 | 1584 | 16V2000G65 | 16 | 31.84L | 198 | 4500*2000*2300 | 7800 | Download | |
| BC-M1000-50 | 1000 | 1250 | 1800 | 18V2000G65 | 18 | 35.82L | 202 | 4700*2000*2380 | 9000 | Download | |
| BCP MTU 4000系列 | |||||||||||
| BC-M1100-50 | 1100 | 1375 | 1980 | 12V4000G21R | 12 | 48.7L | 199 | 6100*2100*2400 | 11500 | Download | |
| BC-M1200-50 | 1200 | 1500 | 2160 | 12V4000G23R | 12 | 57.2L | 195 | 6150*2150*2400 | 12000 | Download | |
| BC-M1400-50 | 1400 | 1750 | 2520 | 12V4000G23 | 12 | 57.2L | 189 | 6150*2150*2400 | 13000 | Download | |
| BC-M1500-50 | 1500 | 1875 | 2700 | 12V4000G63 | 12 | 57.2L | 193 | 6150*2150*2400 | 14000 | Download | |
| BC-M1760-50 | 1760 | 2200 | 3168 | 16V4000G23 | 16 | 76.3L | 192 | 6500*2600*2500 | 17000 | Download | |
| BC-M1900-50 | 1900 | 2375 | 3420 | 16V4000G63 | 16 | 76.3L | 191 | 6550*2600*2500 | 17500 | Download | |
| BC-M2200-50 | 2200 | 2750 | 3960 | 20V4000G23 | 20 | 95.4L | 195 | 8300*2950*2550 | 24000 | Download | |
| BC-M2400-50 | 2400 | 3000 | 4320 | 20V4000G63 | 20 | 95.4L | 193 | 8300*2950*2550 | 24500 | Download | |
| BC-M2500-50 | 2400 | 3125 | 4500 | 20V4000G63L | 20 | 95.4L | 192 | 8300*2950*2550 | 25000 | Download | |
| - | - | - | - | - | - | - | - | - | - | Download | |
1.- C.D.C means cylinder liner.
2. Los parámetros técnicos anteriores: la velocidad es 1800 RPM, la frecuencia es 60 HZ, la tensión nominal es 440 V / 254 V, el factor de potencia es 0,8 / 1,0, el modo de cableado es trifásico de 4 hilos. El grupo electrógeno 1500RPM / 50HZ y el grupo electrógeno de alto voltaje 10kV se pueden personalizar de acuerdo con las necesidades especiales de los clientes;
3.- The generator set can be selected from well-known brands such as Stamford, Marathon Electric, Leroy-Somer, Mecc Alte, WEG, etc. according to customer needs.
4.- This parameter table is for reference only and is subject to change without notice.
Each generator set has undergone a rigorous and comprehensive performance test, including 25% load, 50% load, 75% load, 100% load, 110% load, as well as inspection and verification of all control systems, alarm functions and protection functions. all qualified. They are only allowed to leave the factory after.
